ConnectGenie 4 Port Bulkhead Connector
- Regular price
- $19.82
- Sale price
- $19.82
- Regular price
-

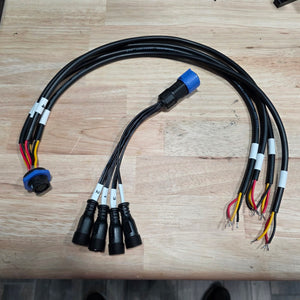

ConnectGenie simplifies pixel wiring by allowing four outputs to pass through your enclosure using a single bulkhead connector. Instead of running multiple cables through glands or drilling several holes, ConnectGenie creates a clean, professional breakout point for power and data.
The connector mounts directly to your enclosure panel and includes internal leads for easy connection to your controller or power distribution board. Outside the enclosure, four xConnect or Ray Wu outputs are ready to plug directly into your pixel strings or props.
Designed for fast setup, cleaner installs, and easy teardown.
Features
• Converts a single bulkhead connection into 4 xConnect or Ray Wu outputs
• Clean, professional enclosure wiring
• Reduces cable glands and enclosure penetrations
• Fast setup and teardown for displays
• Ideal for pixel controller and power enclosures
Specifications
Note: Maximum allowable wall thickness without cap is 3mm (with cap is 2.5mm). This works with Bud Boxes (without cap), ammo cans, metal enclosures and many others, but please ensure it works with your enclosure before purchasing!
• Breakout Ports: 4 xConnect or Ray Wu outputs
• Connector Type: Panel-mount bulkhead
• Voltage Range: 5V – 48V
• Wire Gauge: 18 AWG
• Current Rating: 5A per conductor
• Internal Lead Length: ~22 in (tinned ends)
• Mounting Hole Size: 20mm
Wire Colors
• Red – Power
• Black – Ground
• Yellow – Data

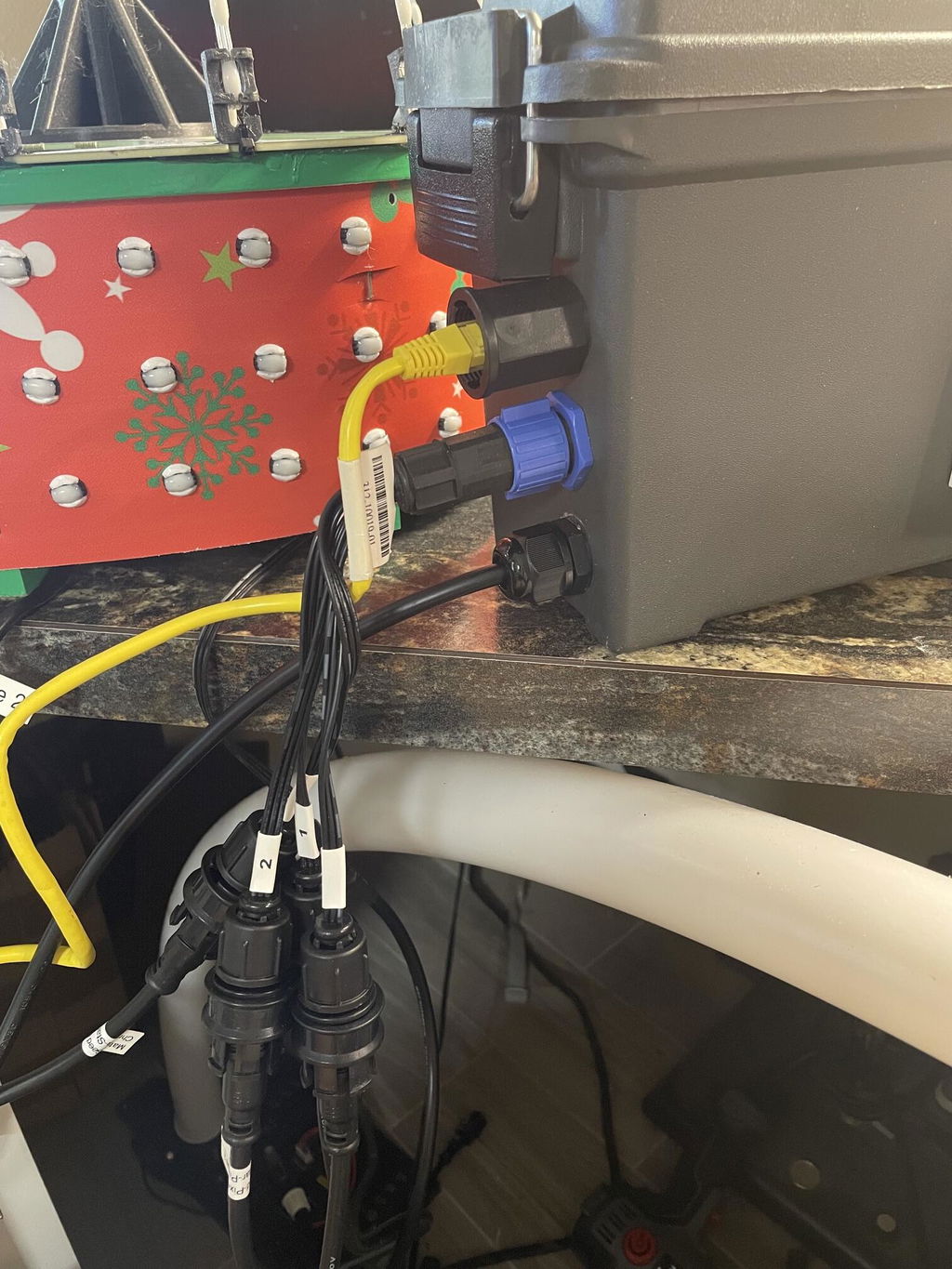

this setup is great, only have to drill one hole instead of four. Pig tails to the controller are extra long, for me I had to shorten, but does allow for many mounting options. I like the push on and click into locking, slight twist on the wings and it un locks, like the labeling also, all my 12v controllers are this xconnect setup
Love these connectors, they are well made and a very nice design. I have been looking for a quality quick disconnect product like this for awhile. I use ethercon and powercon connectors already. With the addition of these everything for all of my controllers will be quick disconnect. i highly recommend anyone wanting Pro level controllers in your display to go this route and add this awesome product.
