ConnectGenie simplifies pixel wiring by allowing four xConnect outputs to pass through your enclosure using a single bulkhead connector. Instead of running multiple cables through glands or drilling several holes, ConnectGenie creates a clean, professional breakout point for power and data.

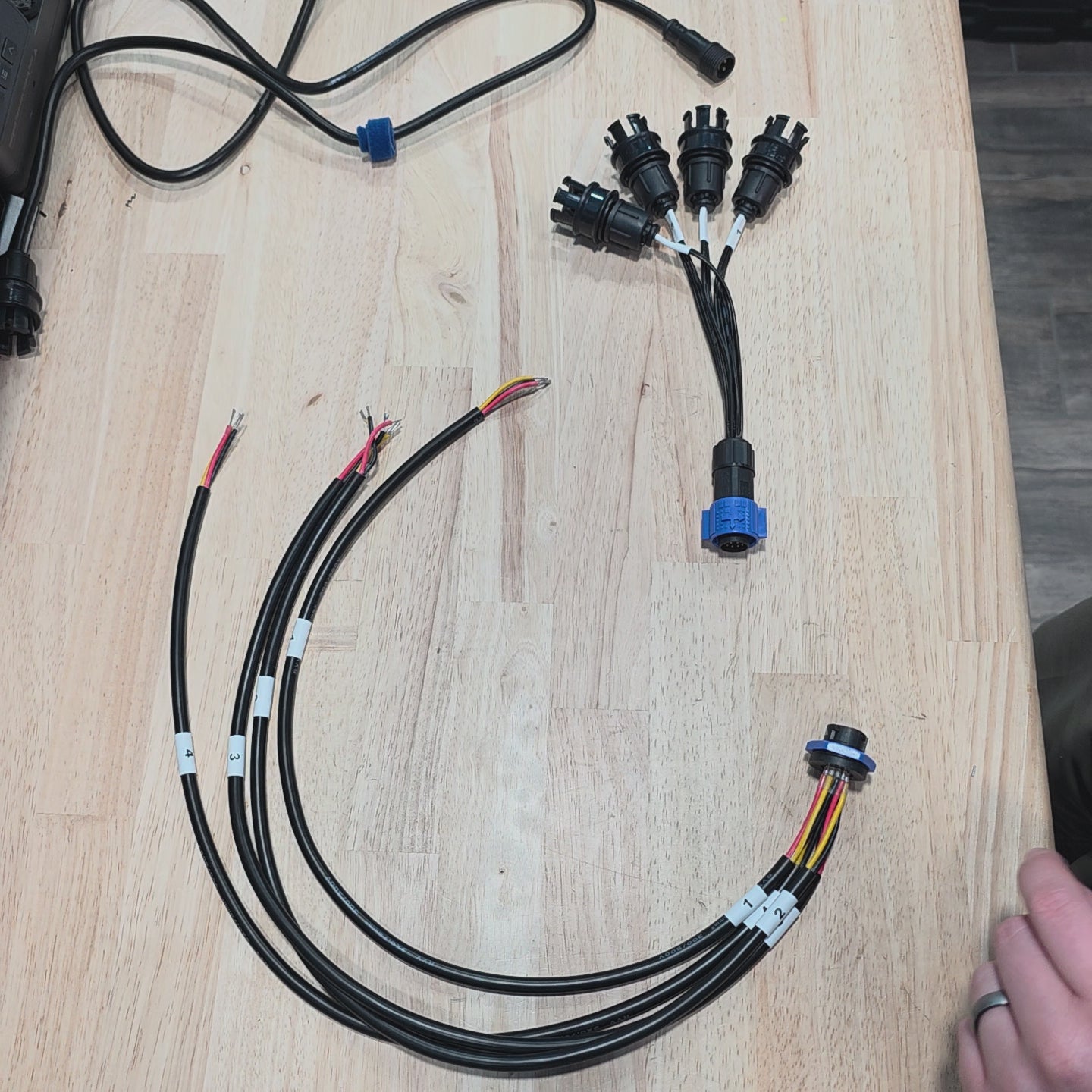

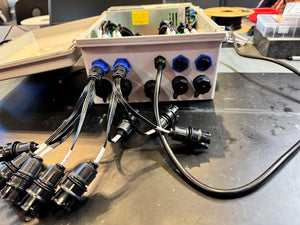

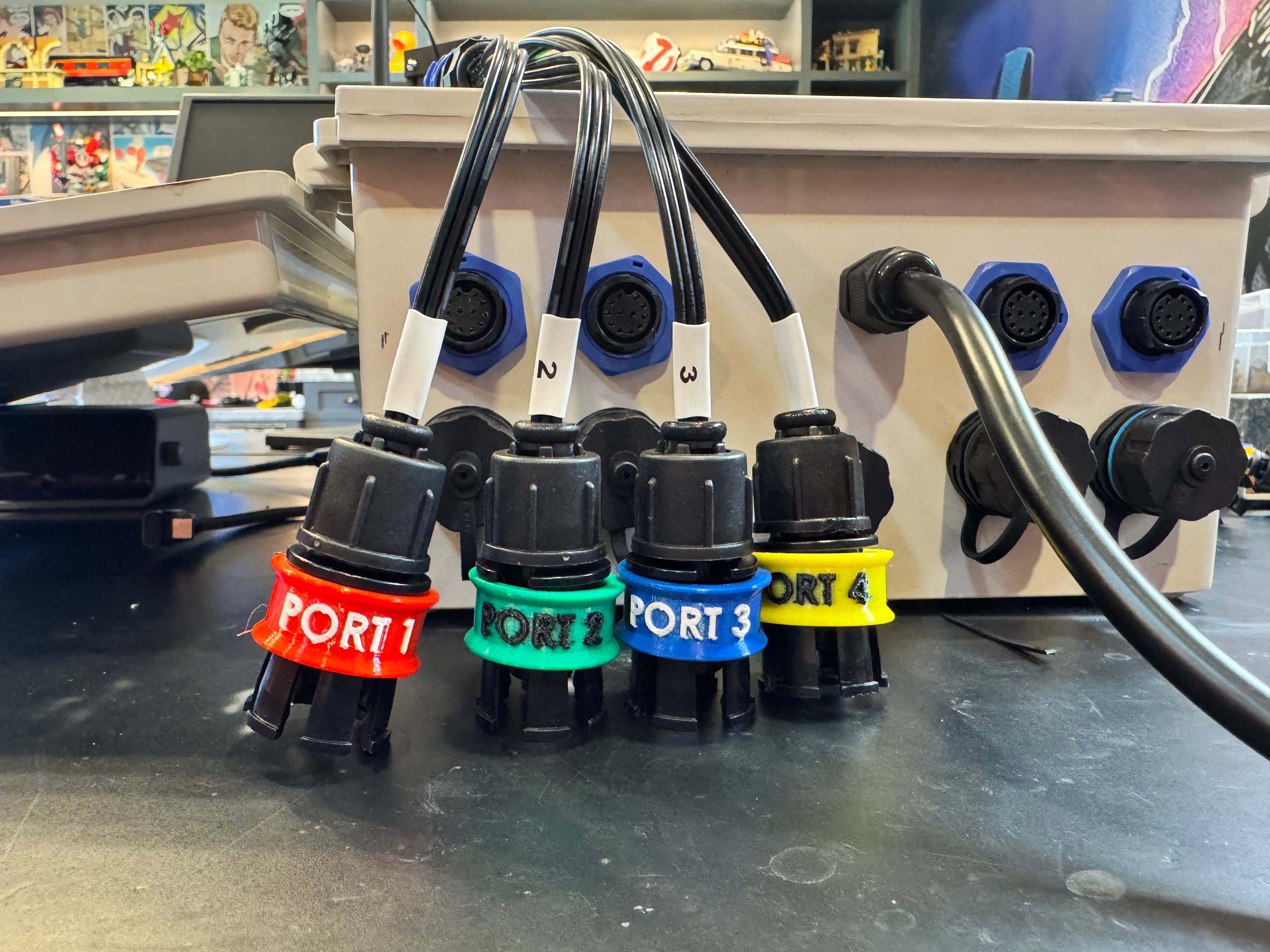

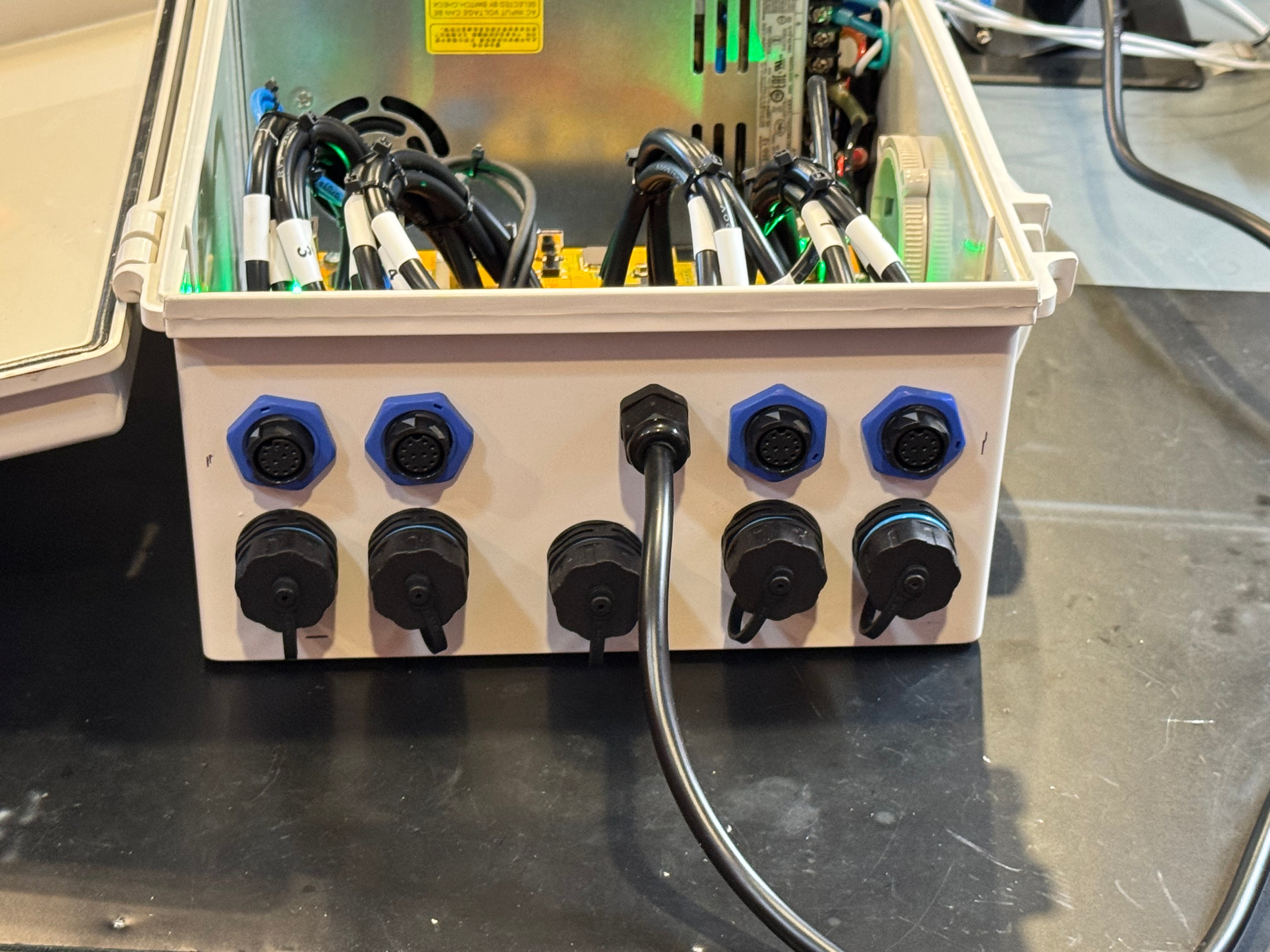

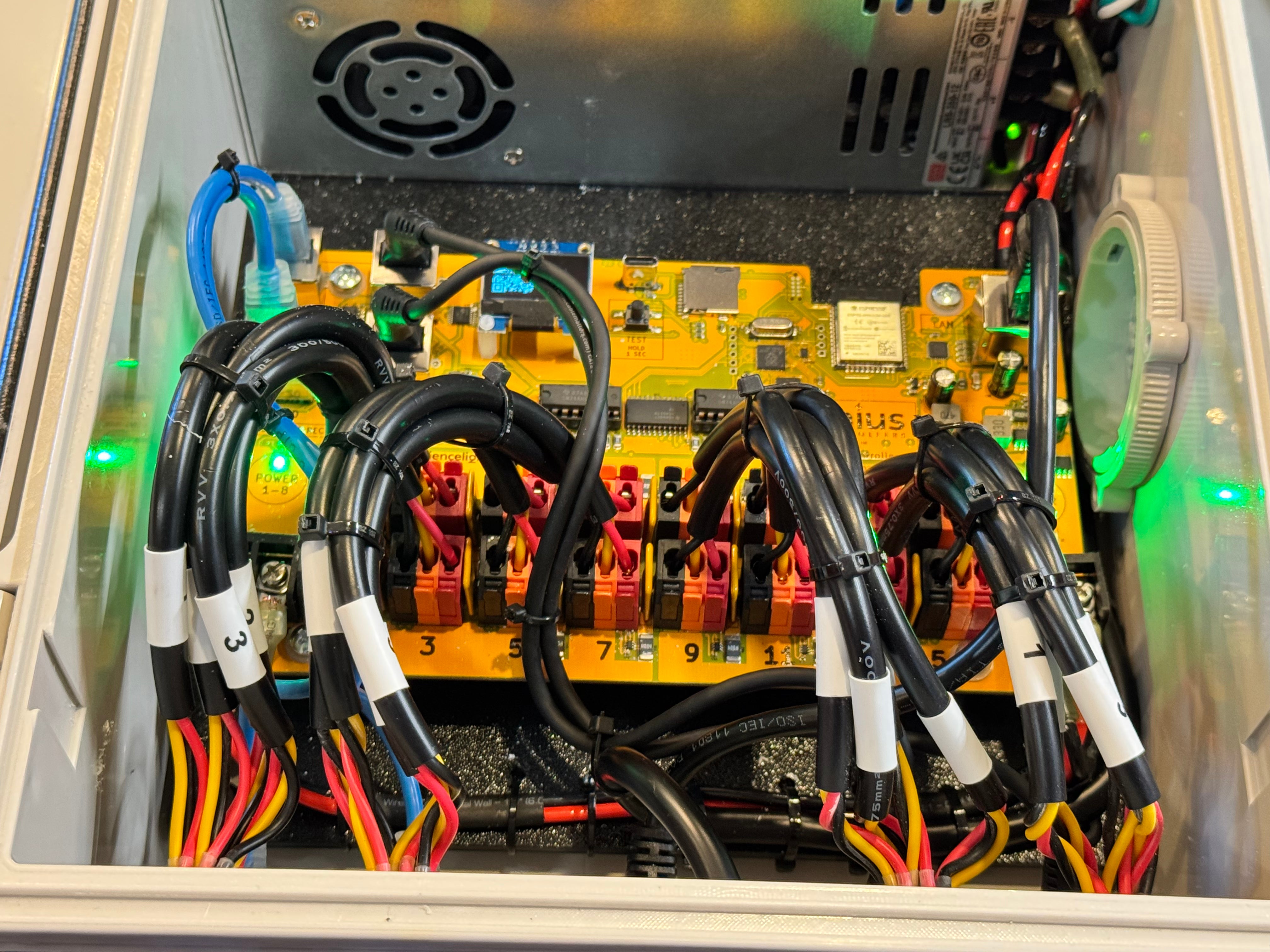

The connector mounts directly to your enclosure panel and includes internal leads for easy connection to your controller or power distribution board. Outside the enclosure, four xConnect outputs are ready to plug directly into your pixel strings or props.
Designed for fast setup, cleaner installs, and easy teardown.
Features

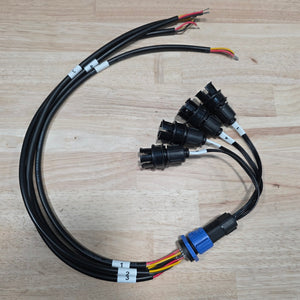

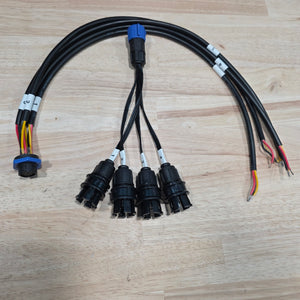

• Converts a single bulkhead connection into 4 xConnect outputs
• Clean, professional enclosure wiring
• Reduces cable glands and enclosure penetrations
• Fast setup and teardown for displays
• Compatible with standard xConnect wiring
• Ideal for pixel controller and power enclosures
Specifications
• Breakout Ports: 4 xConnect outputs
• Connector Type: Panel-mount bulkhead
• Voltage Range: 5V – 48V
• Wire Gauge: 18 AWG
• Current Rating: ≥5A per conductor

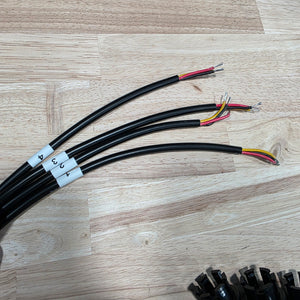

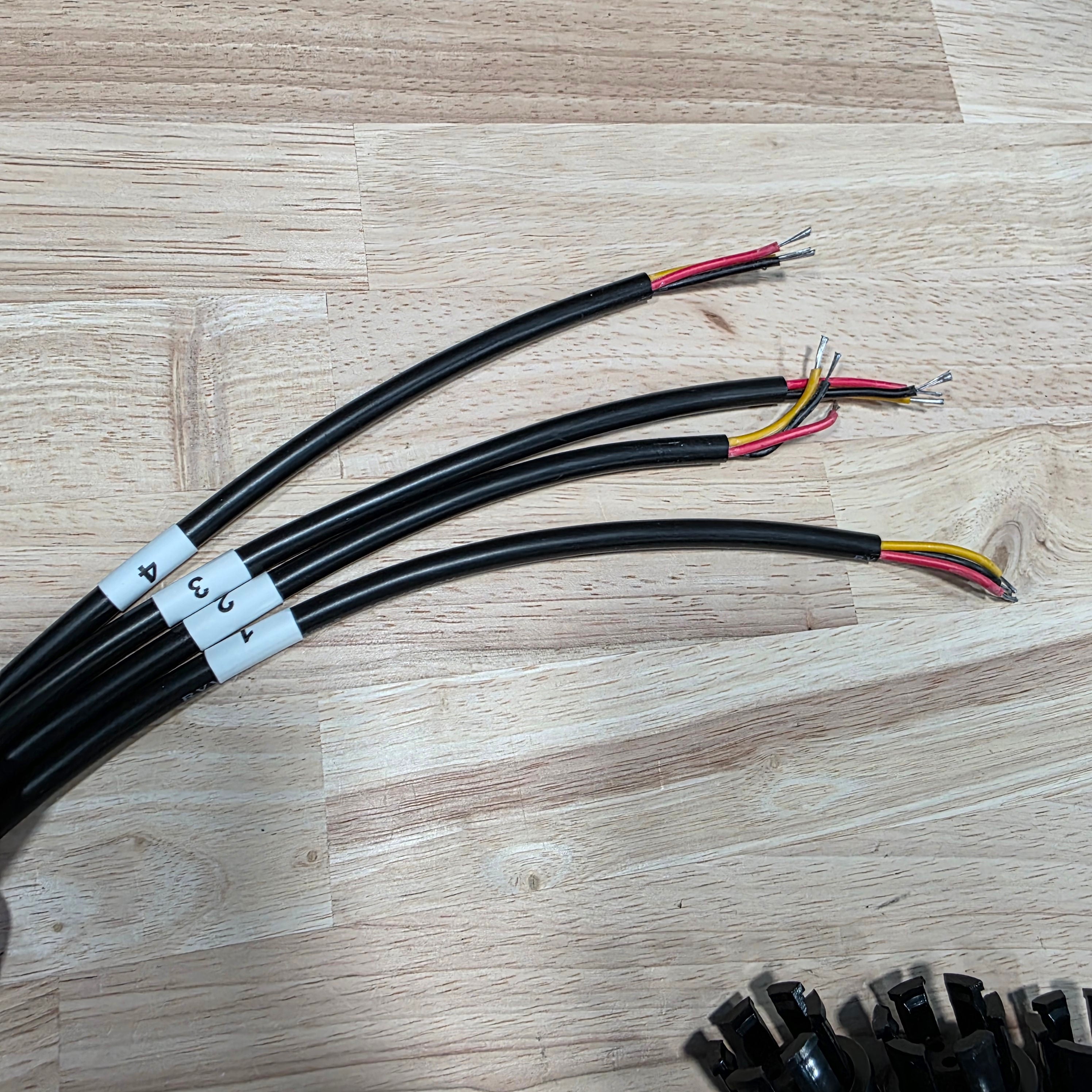

• Internal Lead Length: ~22 in (tinned ends)

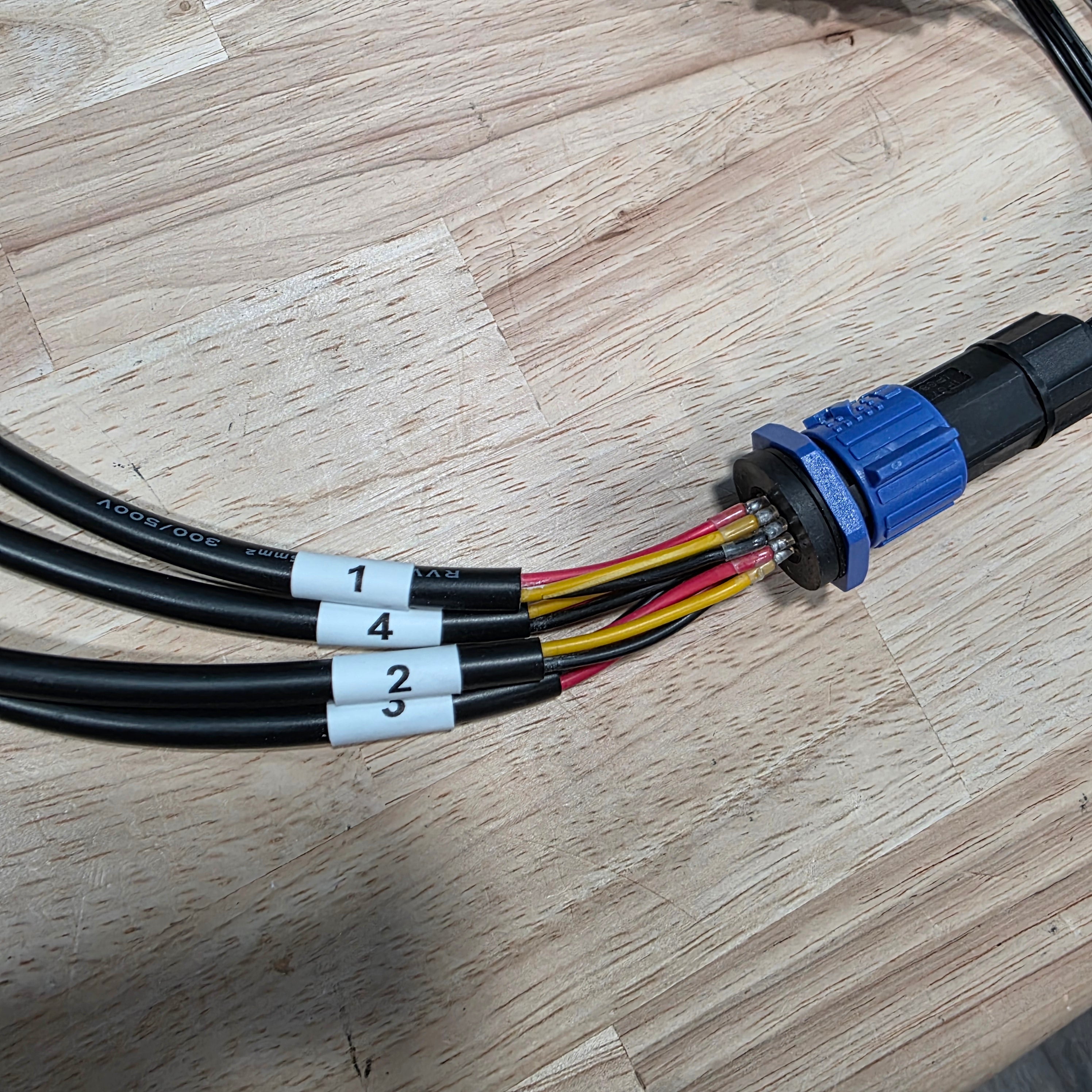

Wire Colors
• Red – Power
• Black – Ground
• Yellow – Data
Typical Uses

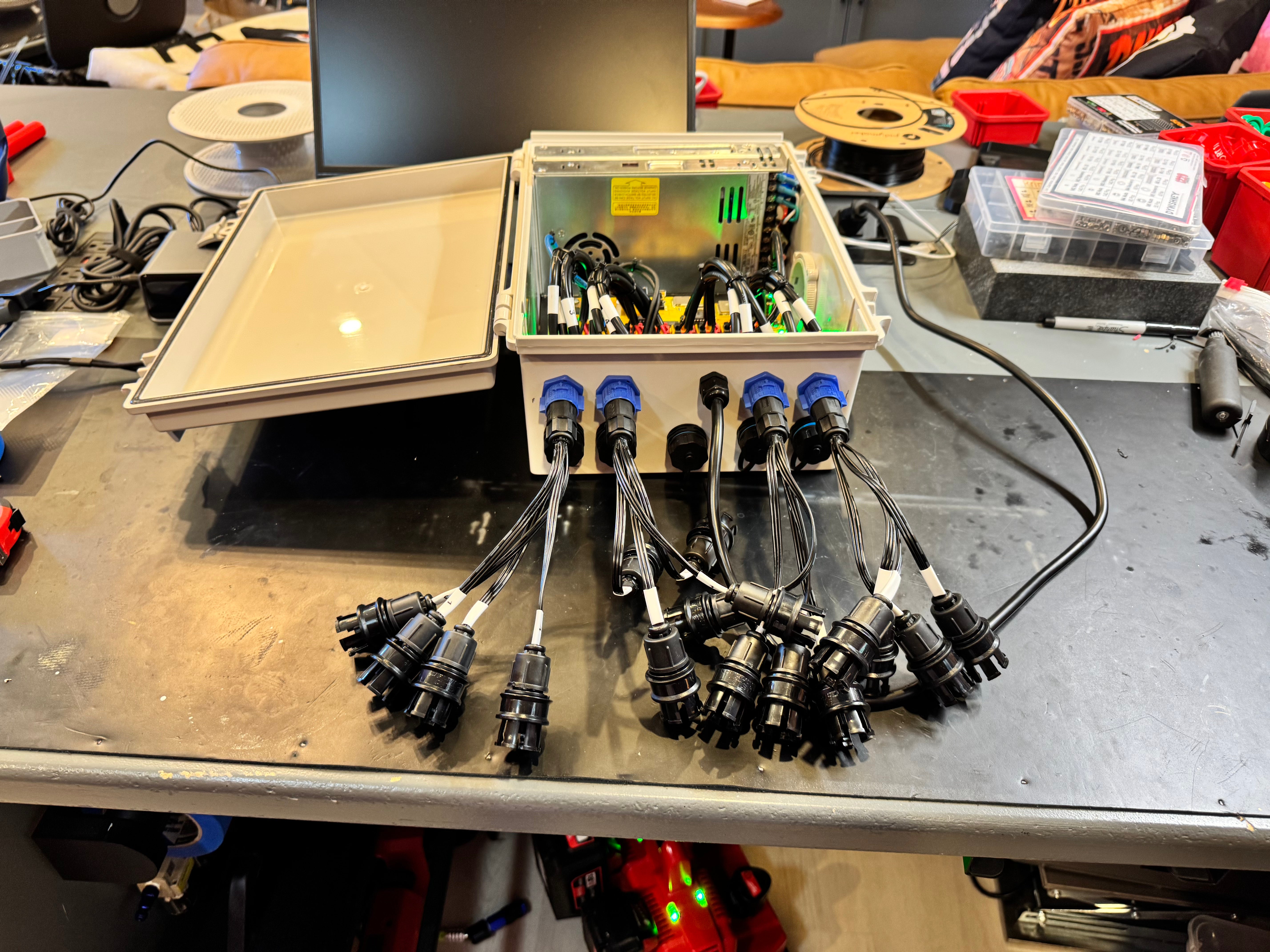

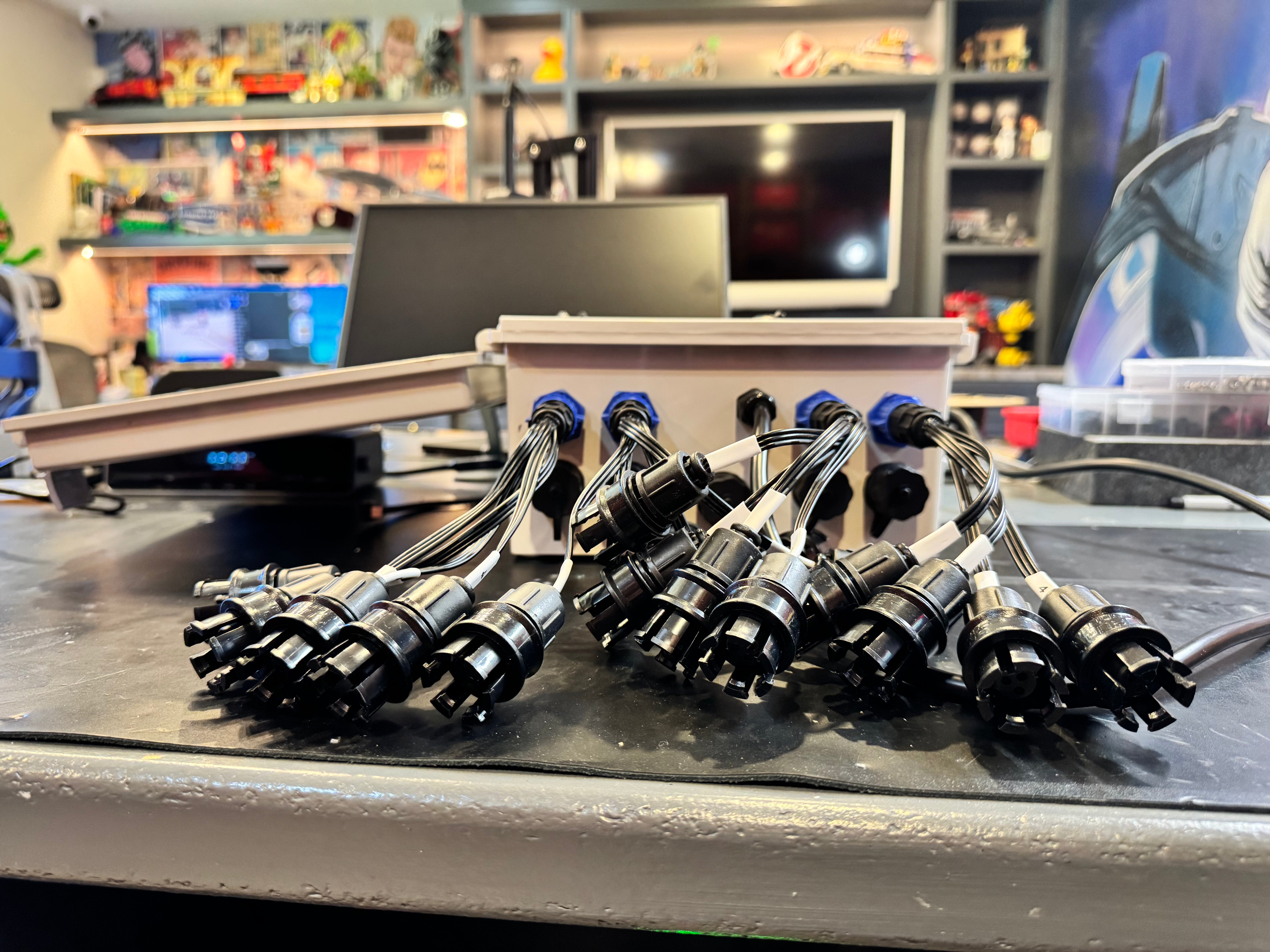

• Pixel controller enclosures
• Power distribution boxes
• Holiday lighting displays
• Permanent lighting installations
