EVO Permanent Mount Pixels – Durable 12V LED Pixels with 3M Adhesive, Redundant Data, IP67 Waterproof

Mattos Designs EVO Permanent Mount Pixels

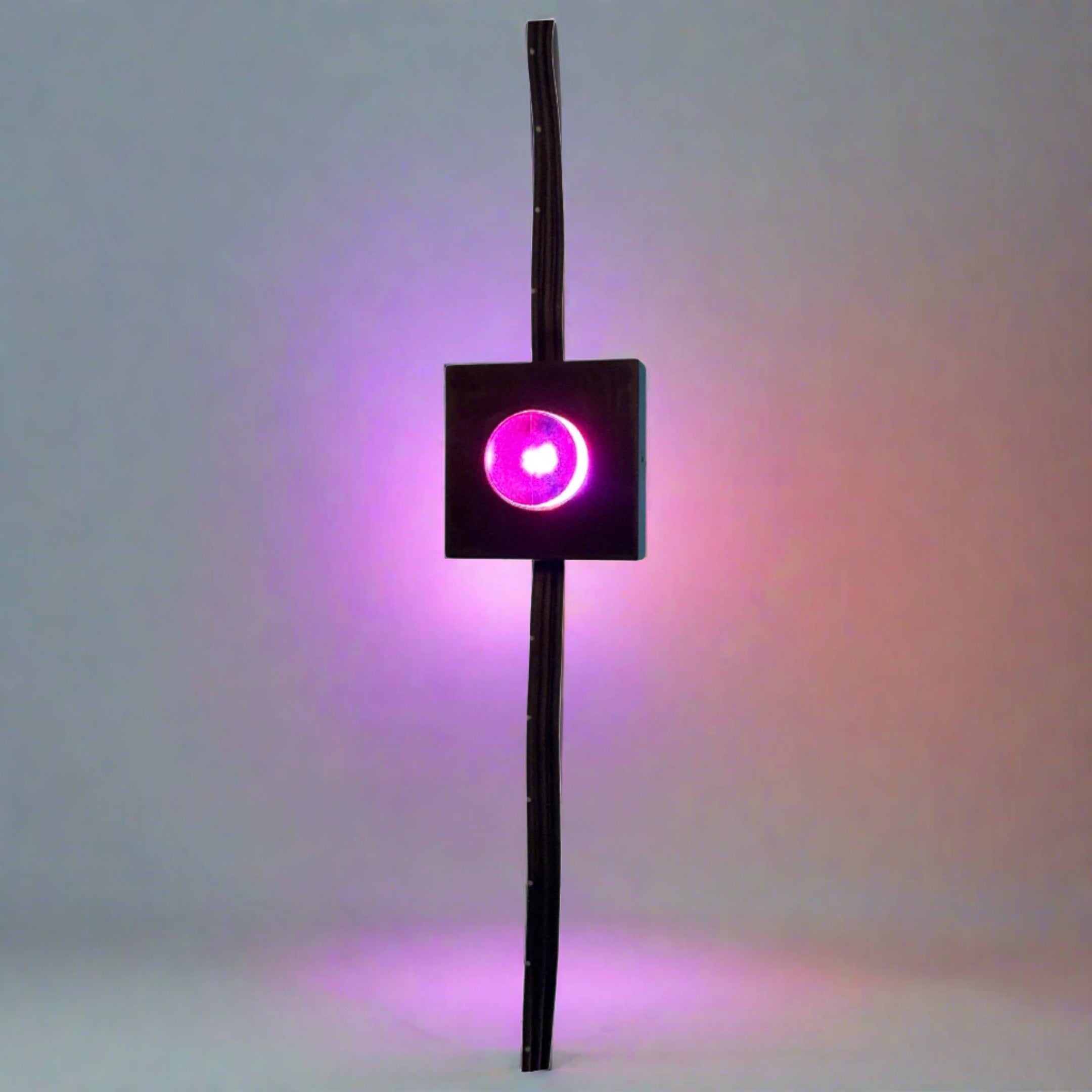

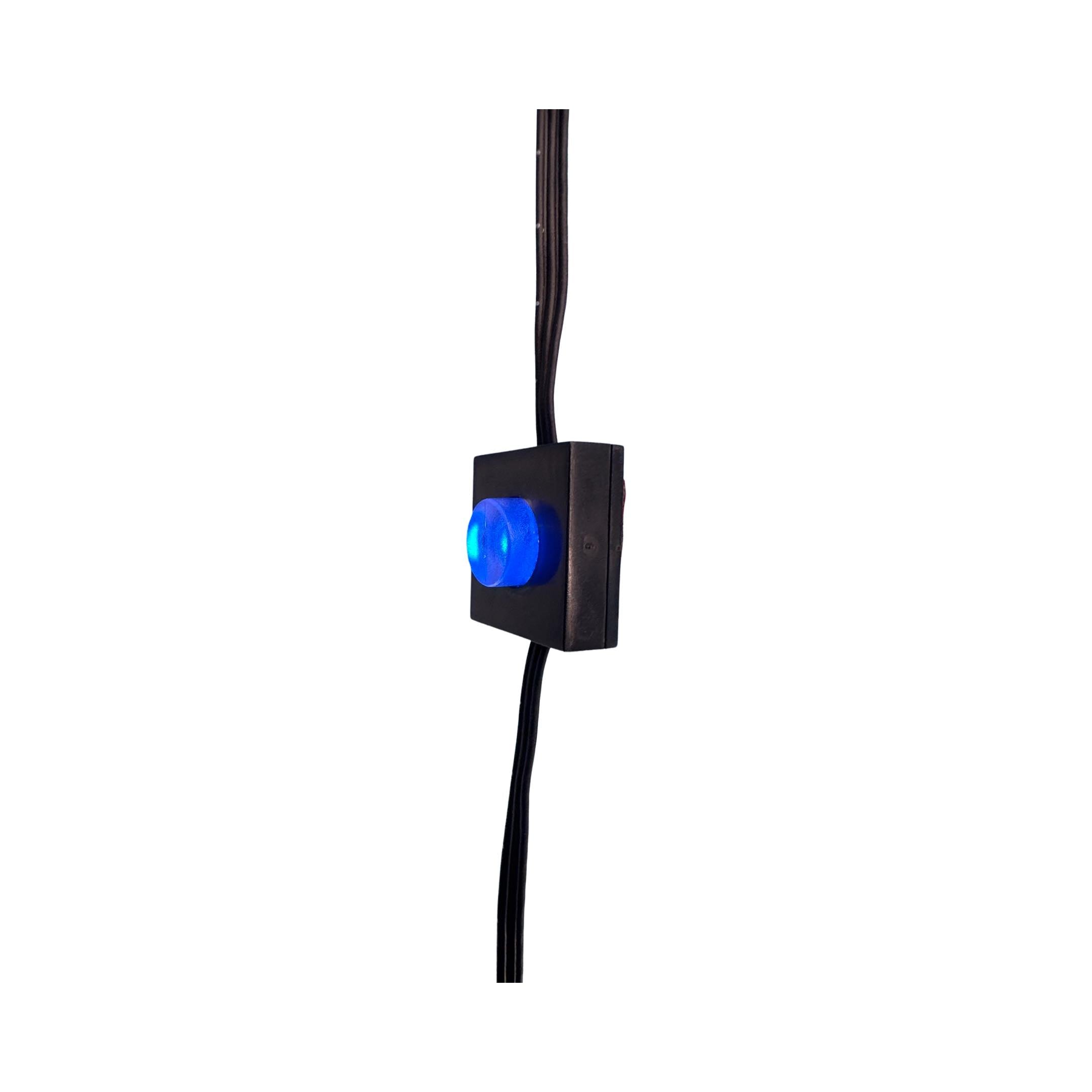

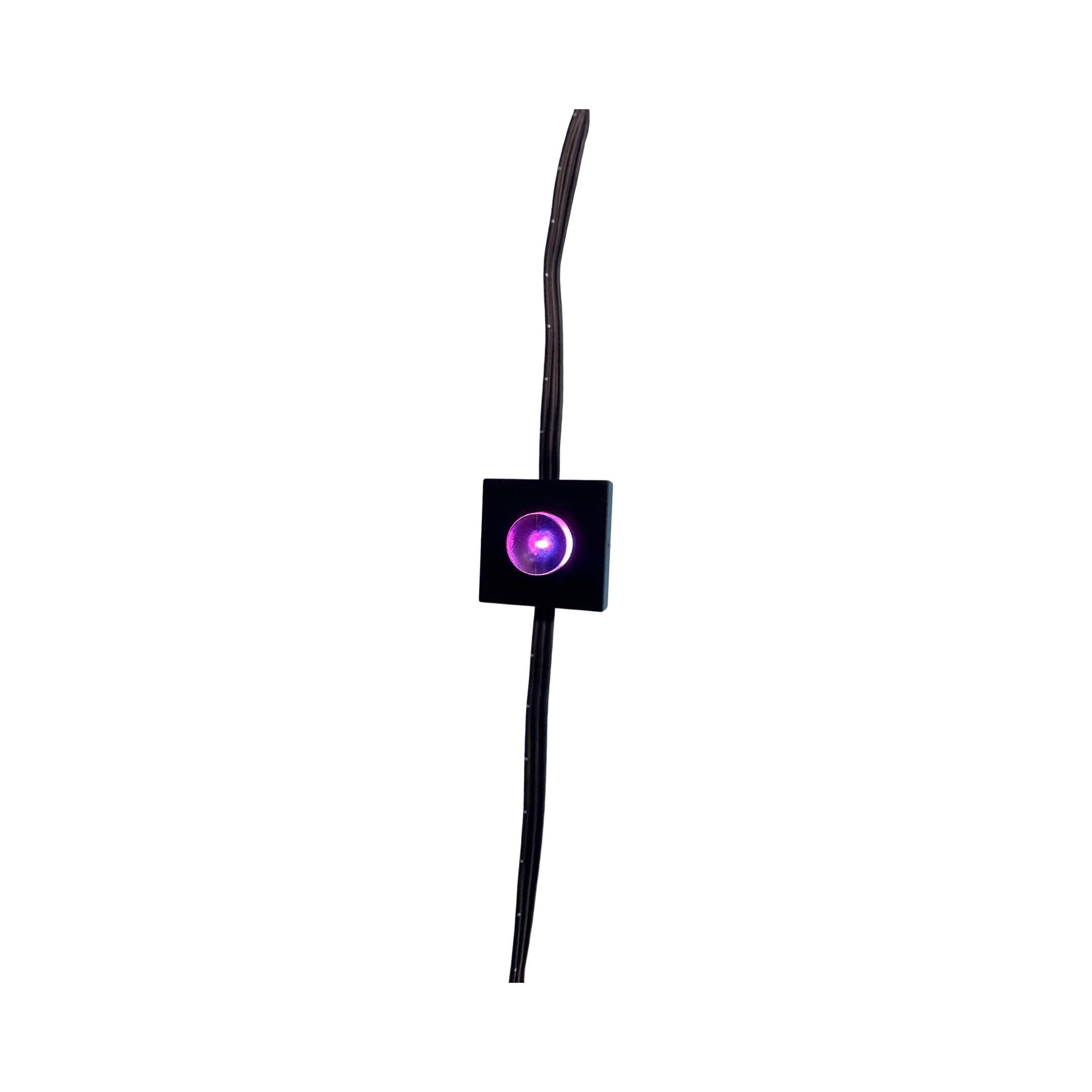

Introducing the newest member of the EVO pixel family – the EVO Permanent Mount Pixels. Designed for long-term installations, these pixels combine the proven EVO pixel technology with an innovative plastic mounting body and pre-applied 3M VBH adhesive pads, ensuring a secure and permanent placement.

Key Features:

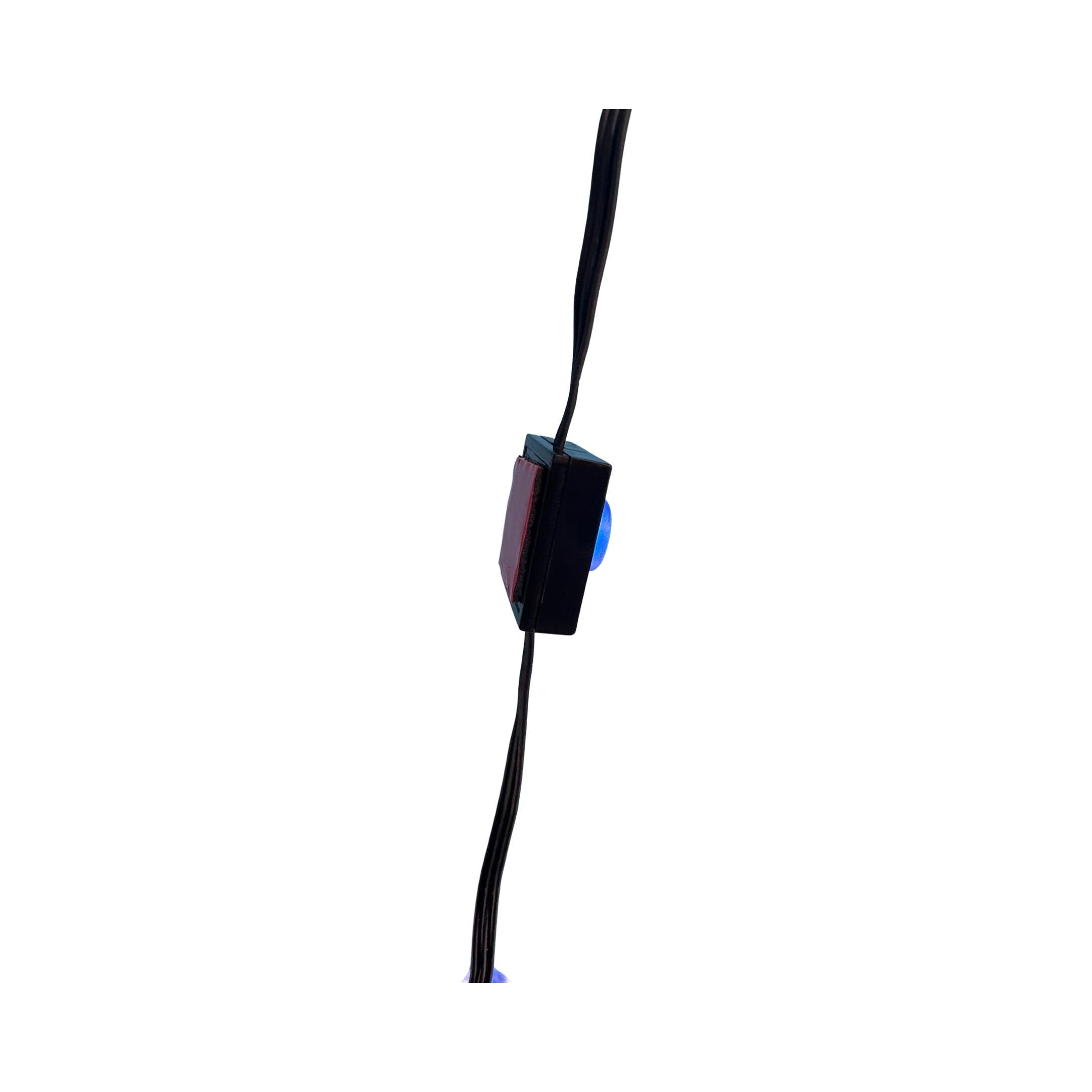

• Permanent Installation: Featuring 3M VBH adhesive pads for easy and secure installation. Simply clean the surface, warm the adhesive if installing in cold weather, and press into place. The 4" center-to-center spacing allows for easy maneuvering and discreet installation.
• Redundant Data Technology: Incorporates a 3248 RGB - 12V B LED/driver chipset with redundant data technology to ensure a single pixel failure won’t affect the rest of the string.

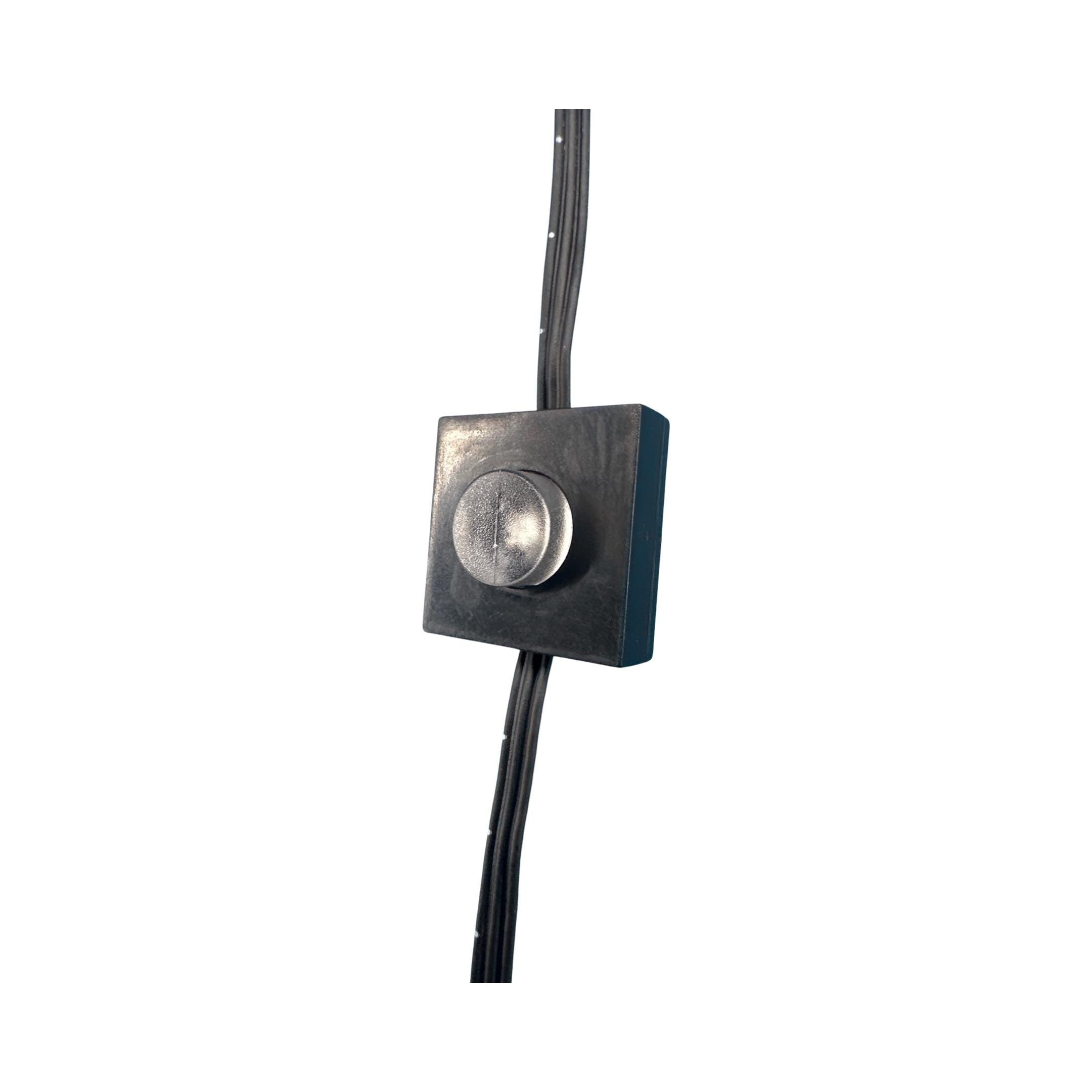

• Efficient Design: The constant current design and native 12V technology reduce internal components, minimizing power draw and potential failure points. Each pixel is fully encapsulated in PVC and pre-assembled into the plastic housing for added durability.
• 4-Wire Technology: Equipped with 4-wire connections and xConnect style connectors. Each set includes a 4-pin to 3-pin adapter for the input line and an optional end-of-string adapter to connect 3-wire pixels to a 4-wire permanent string.
• Wide Voltage Range: Rated at 12V with a voltage range of 10.8V to 13.2V DC, and a current draw of 9mA at 12V. Operating temperature range is -40°C to +85°C (-40°F to 185°F).
• High Brightness: mcd values are R 100-300, G 200-600, and B 50-200 at 12V DC. Built-in signal reshaping circuit ensures reliable data transmission at 800kbps.

Specifications:

• Voltage: 12V DC, no on-board resistors or regulators required
• Protocol: WS2811 compliant with 3248 RGB B LED chipset
• Spacing: 4-inch spacing, available in 100-count packages
• Protection: IP67 rated with encapsulated PCB and wire, further enclosed in a PVC shell
• Connectors: 4-wire xConnect Pigtails with 4-to-3 adapters included
• Wire: 20ga black wire standard
• Certifications: UL Listed, CE, RoHS, and FCC certified
• Warranty: 3-year warranty for all unmodified and uncut pixel strings

Benefits:

• Long-Lasting Durability: The high-quality PVC construction and secure 3M adhesive ensure a permanent installation that withstands various environmental conditions.
• Effortless Setup: Pre-applied adhesive pads and convenient spacing make installation quick and easy.
• Superior Lighting: Redundant data technology and WS2811 protocol provide bright, consistent illumination for any display.
• Reliable and Safe: Certified for safety and reliability, offering peace of mind for long-term installations.

Transform your permanent lighting displays with the EVO Permanent Mount Pixels from Mattos Designs, delivering unmatched durability, easy installation, and brilliant lighting for a lasting and impressive setup.
