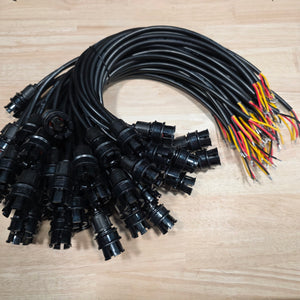

20 Inch Round xConnect Pigtail - Female

Yes, we're still calling them pigtails. Still not sorry about it.

These longer 20" round-wire pigtails are the workhorse of the bunch — most commonly used when building controller boxes, but equally at home creating custom length extensions and connectors. The extra length gives you the flexibility to route, wrap, and wire things up the right way instead of just the close-enough way.

Comes with a SLip Connect pre-installed on the female xConnect end — ready to connect right out of the bag.

What You'll Actually Use These For

• Controller box builds — route clean connections from your controller to your pixel runs
• Custom extensions — need a specific length? Start here
• Custom connectors — terminate and connect exactly where you need to

The bare wire end is color coded and ready to splice:

• 🔴 Red — V+ (positive)
• ⚫ Black — V− (negative)
• 🟡 Yellow — Data

What You Need to Know

• 20" length — extra reach for controller builds and custom runs
• Round jacketed wire — clean, durable, easy to route
• 18 AWG — solid gauge for reliable power and signal delivery
• IP68 rated female xConnect end — fully submersible, built for outdoor installs
• SLip Connect pre-installed — ready to connect out of the bag
• Highly recommended: pair with heat-shrink solder sleeves for fast, reliable, waterproof junctions at the splice point
